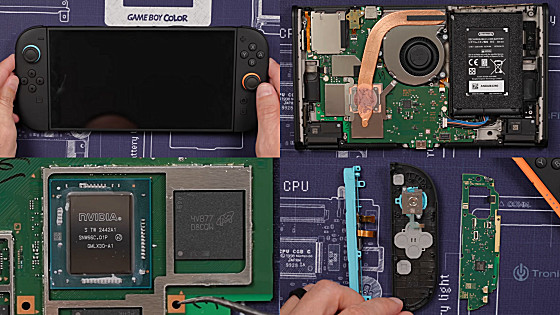

A video showing the Nintendo Switch 2 being disassembled has already surfaced, revealing the NVIDIA custom chip and Joy-Con 2 sticks
The
Nintendo Switch 2 Disassembly - Complete Disassembly - YouTube

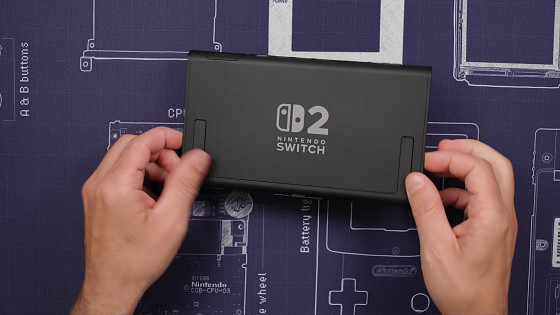

Nintendo Switch 2 with Joy-Con 2 removed.

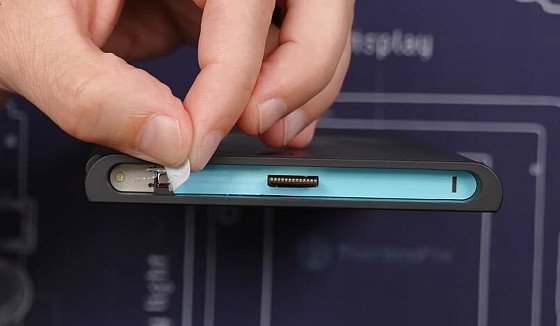

There is a sticker on the connector part of Joy-Con 2, so peel it off.

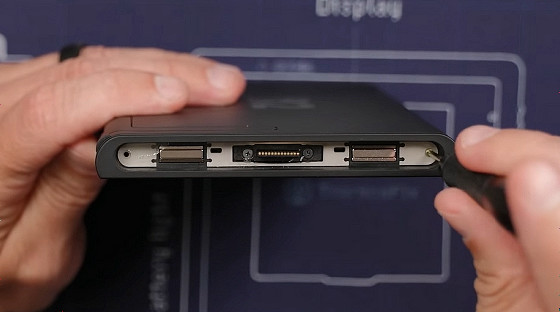

The magnets for fixing the Joy-Con 2 are exposed. Both ends are secured with screws, so remove them with a screwdriver.

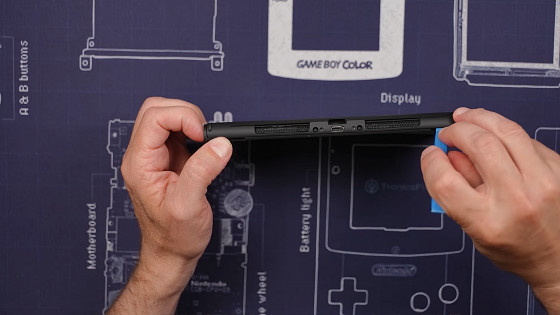

Next, insert the spatula and pry it open.
The back of the main unit can now be easily removed.

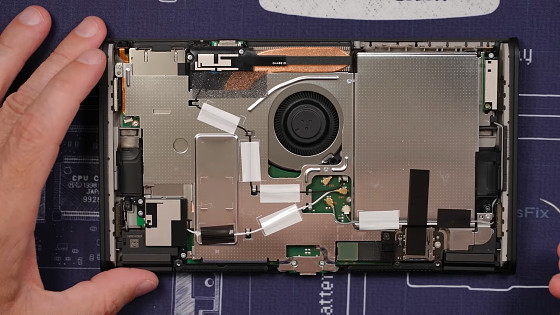

The inside of the Nintendo Switch 2 looks like this. Most of it is covered with a silver cover.

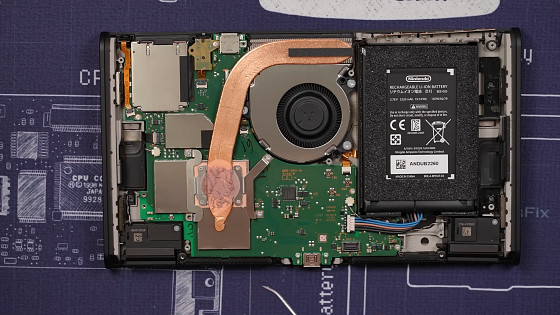

When the cover was removed, the cooling fan, battery, etc. appeared.

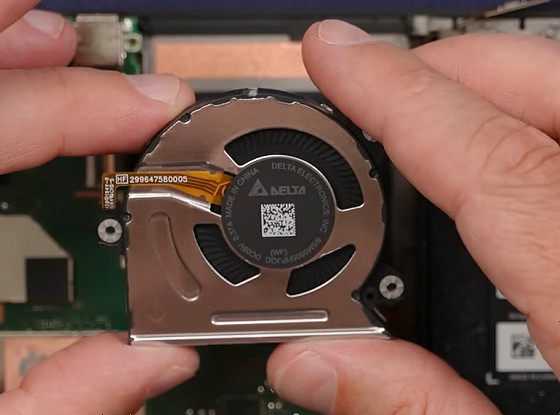

The cooling fan is made by

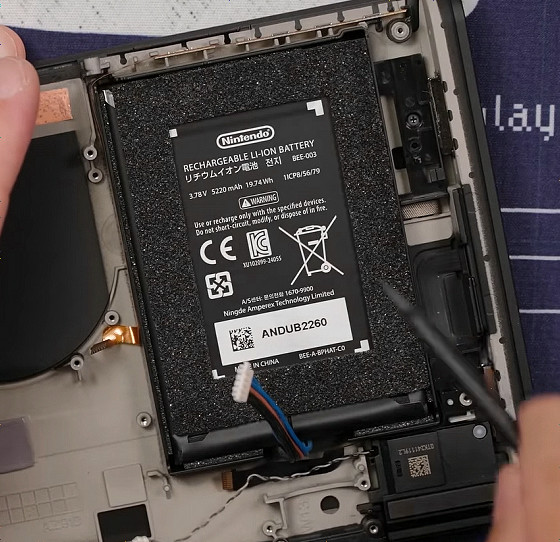

The battery is marked '3.78V', '5220mAh', and '19.74Wh'.

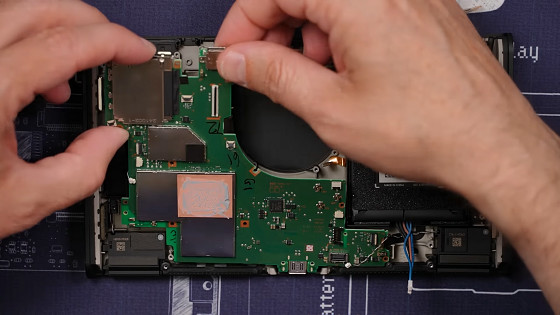

Remove the board.

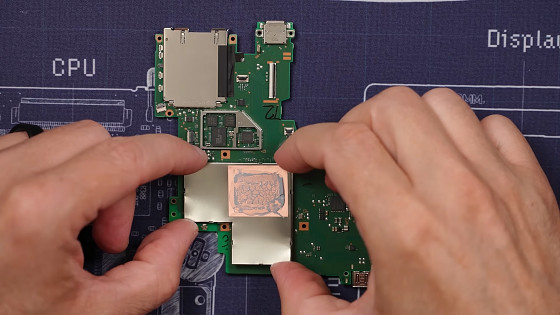

The cover covering the chip is also removed.

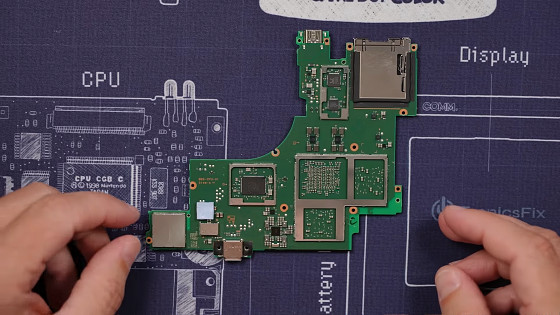

The board looks like this. The NVIDIA custom chip is mounted on the bottom left.

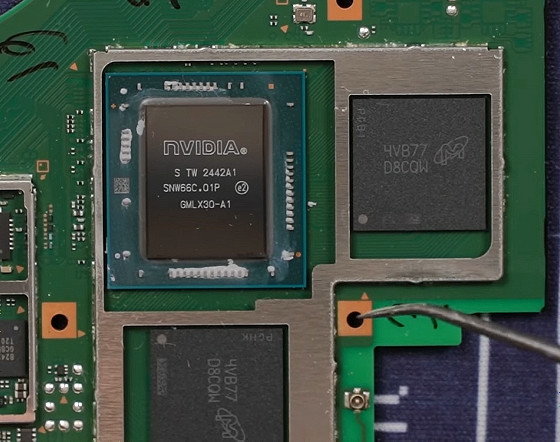

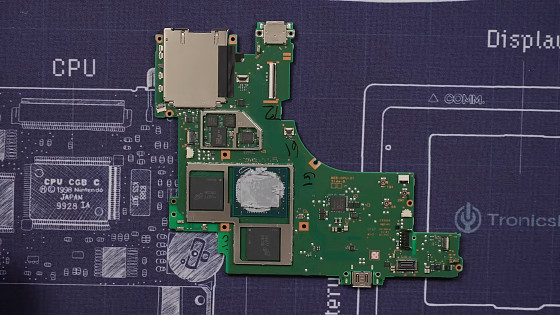

This is what it looks like when you remove the grease applied to the surface of the NVIDIA custom chip.
By the way, NVIDIA has revealed that the custom chip used in the Nintendo Switch 2 has built-in Tensor cores (AI processing cores) to support the high-definition function 'DLSS' and RT cores for ray tracing processing.
On the back side of the board were a wireless communication controller and a power management chip.
TronicsFix has also released a video showing the Joy-Con 2 disassembly.

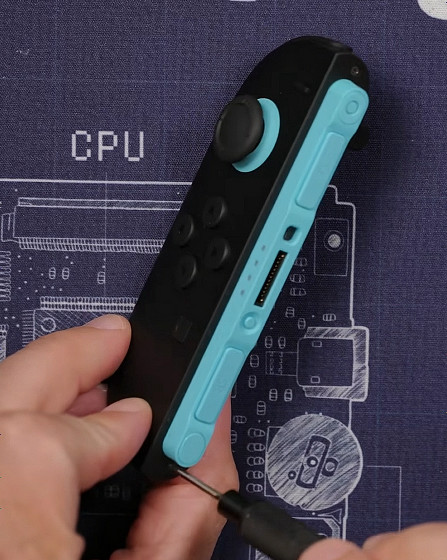

Remove the screw on the connector side of Joy-Con 2.

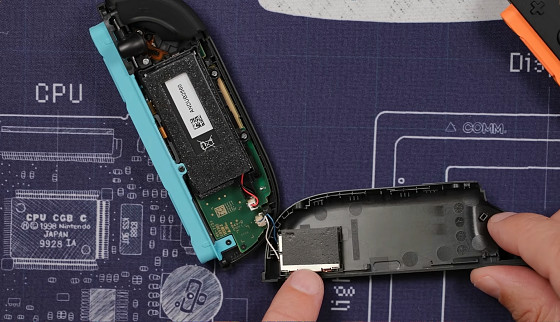

When I removed the back cover, the battery was revealed.

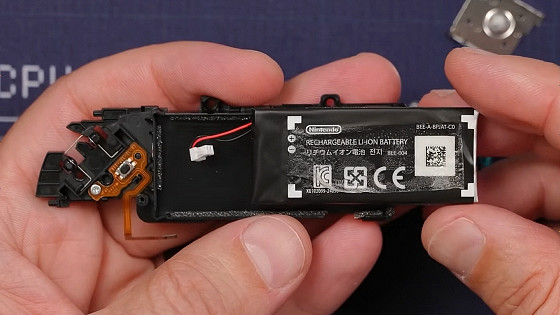

The battery looks like this.

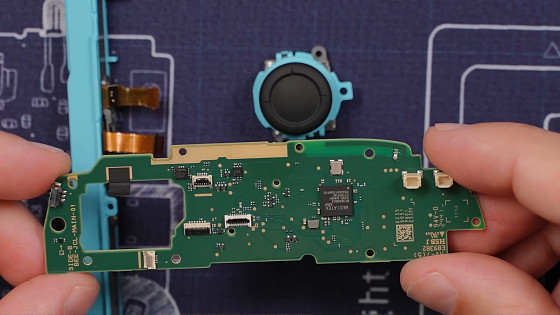

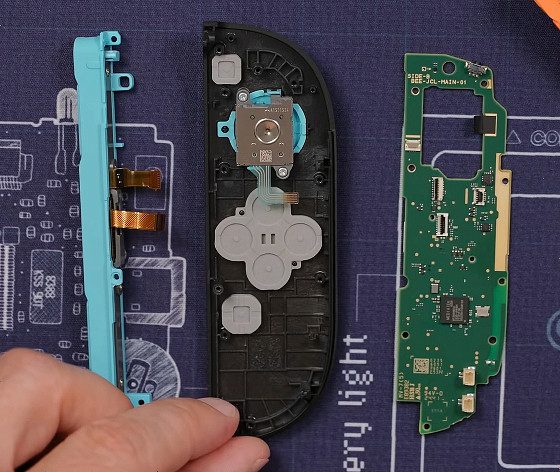

We proceeded with disassembly and succeeded in removing the circuit board.

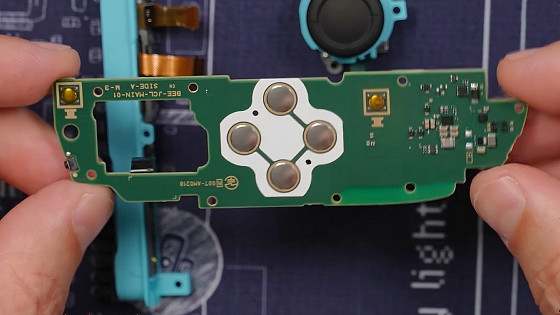

There is a button contact.
The back of the board looks like this.

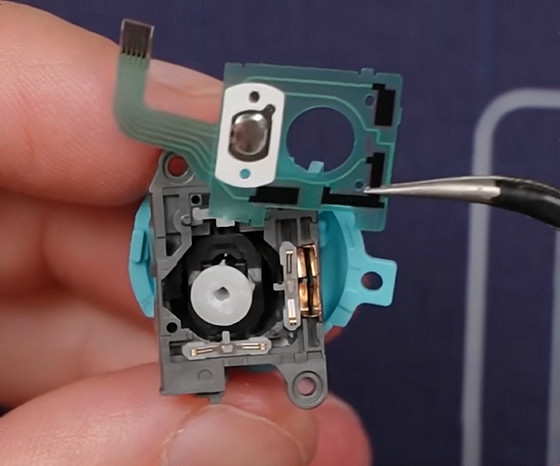

This is the Joy-Con 2 stick.
TronicsFix, who checked the internal structure of the stick, pointed out that due to the small size of the internal parts, '

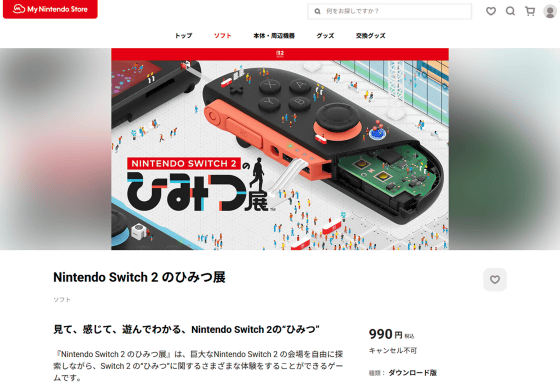

In addition, Nintendo is selling a game called 'Nintendo Switch 2's Secret Exhibition' that explains the technology installed in the Nintendo Switch 2 for 990 yen including tax.
Nintendo Switch 2 Secrets Exhibition | My Nintendo Store
https://store-jp.nintendo.com/item/software/D70010000096305
